Information

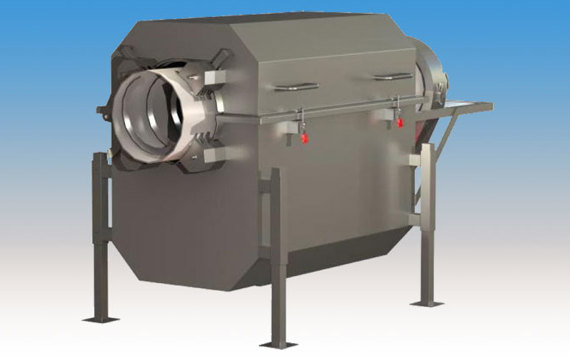

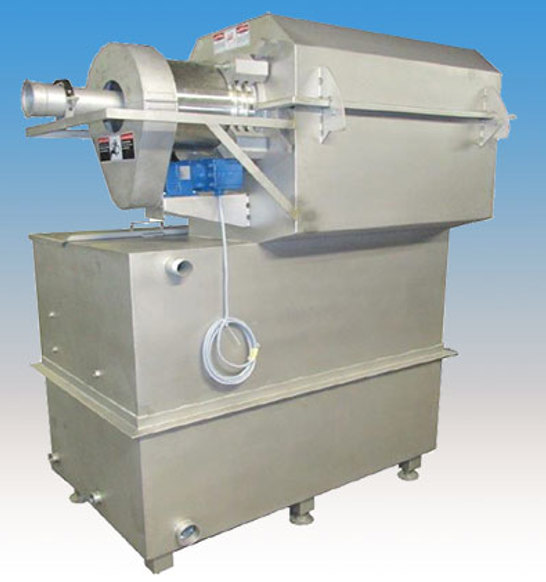

Our Prime paw water screening and re-use systems remove solid particles greater than .015 inches in size, in volumes ranging from 50-200 GPM. A typical system includes a first-stage rotating stainless-steel wedgewire drum screen (LPS-112), and can include an integrated tank (LPS-112-TS).
Details
- Electrical Requirements:
- LPS-112: (1) 1/4 hp motor; 230 OR 460V, 3 PH, 60 Hz
- LPS-112-TS: (2) 7.5 hp motors and (1) 15 hp motor; 230 OR 460V, 3 PH, 60 Hz
- Water:
- LPS-112: (2) 3/4 connections
- LPS-112- TS: (2) 3/4 and (1) 2
- Capacity:
- Up to 200 GPM
