TIPPER TIE KDCR Automatic Double Clipper

  • Fast processing up to 130 cycles/minute, depending on portion size
  • Spool clip magazine capacity handles 3,500 sausages
  • Two-handed operation improves operator safety
  • User-friendly, easy to maintain, and quiet
  • Durable stainless steel construction
  • Easy to position due to sub-frame with castors
  • JBT TIPPER TIE PRoCARE® available
Contact a specialist
kdcr
Generic Marel branded image

Information

KDCR is an automatic double-clipper specially developed for the production of ring-shaped products in natural casings. It is also ideal for sealing pork or beef rounds in calibers up to 46+ mm, and reliably processes ring and other shaped products in collagen, cellulose or plastic casings up to caliber 50+ mm.

Please read a case study on Nothwang here.

Details

  • Applications – sausage, vegan sausage
  • Pneumatic control
  • Special voider system and moving casing brake ensure processing of delicate natural casings
  • Smooth, inclined surfaces, and easy accessibility enable fast, hygienic cleaning
  • Complies with all requirements of the European Machinery Directive and Clipping Machine Norm EN13885

Versions

  • Lever control creates same-sized portions in terms of appearance to compensate for normal deviations of natural casings
  • Casing applicator
  • Automatic string dispenser
  • Spool clips
  • Loop dispenser
  • Pneumatically controlled casing brake
  • Electric chain counter

Service

Marel offers a range of service solutions to prevent failures, maximize performance or in case of unexpected breakdowns remote or onsite assistance.

Marel has offices in 30 countries across all regions, and a global network of highly skilled professionals that provide remote as well as onsite service support. We provide quality spare parts and customized service agreements for our customers to ensure optimal performance of Marel equipment.

Gallery

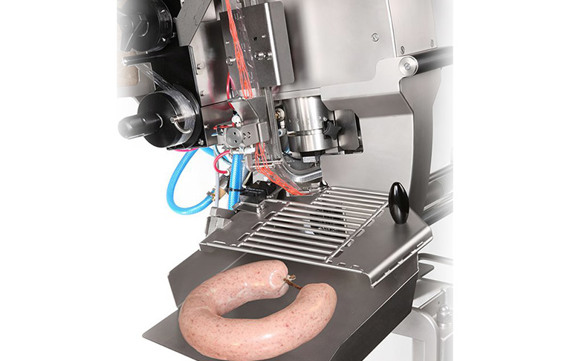

kdcr-ring-sausage-clipper-600h

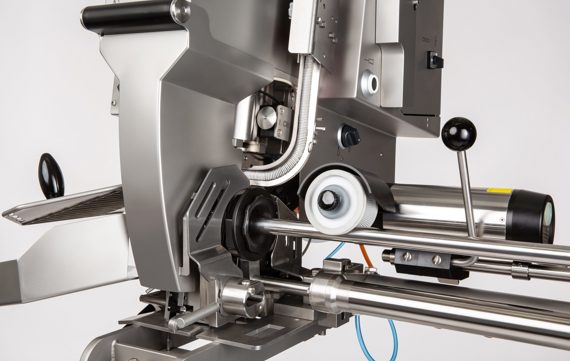

KDCR1-scaled

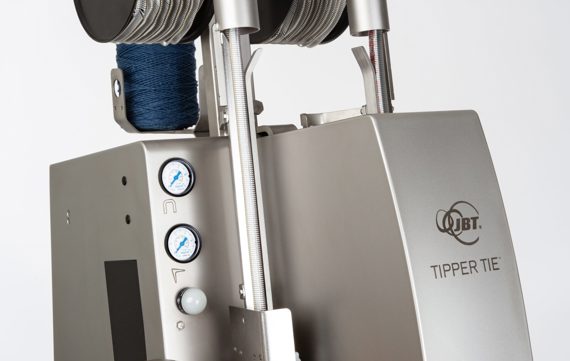

KDCR2-scaled

Downloads

Title Size Document
Title KDCR - English Size (1.4MB) Document Download
Title KDCR - German Size (1.4MB) Document Download
Title KDCR - French Size (1.3MB) Document Download
Title KDCR - Russian Size (1.4MB) Document Download
Title KDCR - Spanish Size (1.3MB) Document Download
Title KDCR - Portuguese Size (1.3MB) Document Download

Related products & solutions

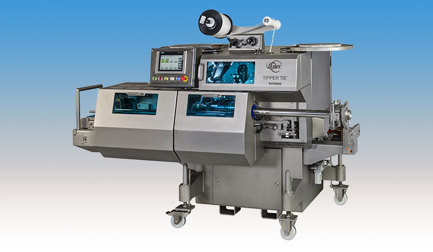

TIPPER TIE SVU6800 Automatic Double Clipper
