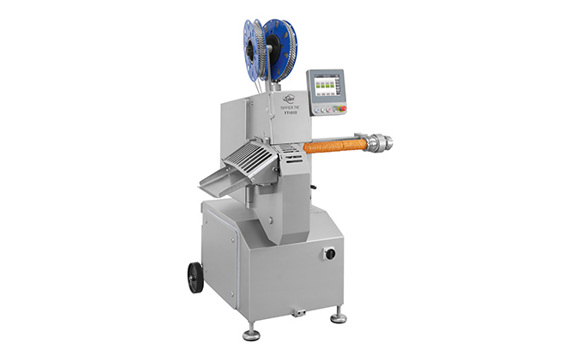

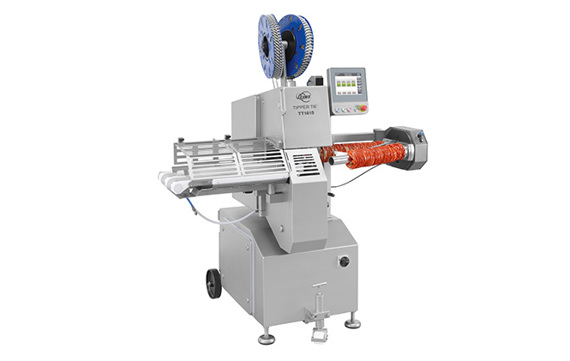

TIPPER TIE TT1815 & TT1512 Automatic Double Clippers

  • TT1512 handles calibers 20mm to 80mm and TT1815 handles calibers 35mm to 140mm
  • Entire machine, including all drive levers, constructed of durable stainless steel
  • Ergonomic, compact design
  • Cutting-edge design elements provide long service life and minimum wear
  • Fast clip pitch conversion enables individual use and increases flexibility of caliber range
  • 20 speeds plus continuous run maximize productivity
  • JBT TIPPER TIE PRoCARE® available
tt1815
Generic Marel branded image

Information

The TT automatic double clippers are the result of years of experience and systematic product development and represent the finest quality in modern closure technology. They process all familiar plastic, fibrous, and collagen casings, and connect to all conventional filling machines. Portions are sealed precisely without product residue in the casing ends for numerous food and non-food applications.

Please click on the links below to read the following case studies:

Details

  • Applications – sausage, fresh ground meats, soy tofu/tempeh/seiten chubs, vegan sausage, fresh ground fish, surimi/sausage paste, raw/frozen/refrigerated pet food, pumpable cheese, soup, sauce, ground fruits/vegetables, netted fruits/vegetables, and industrial explosives chub packages
  • Electronic clip closure force monitor prevents machine damage due to operating errors and increases production reliability
  • Equipped with maintenance-free servo drive and PLC control
  • Touch screen control of machine operation, knife and tool change parameters, cleaning position, and clip cam for maintenance work
  • Smooth, inclined surfaces allow fast, hygienic cleaning
  • Valves, drive, and control hermetically sealed against water and dirt

Versions

  • Overspreading up to 130mm (TT1815)

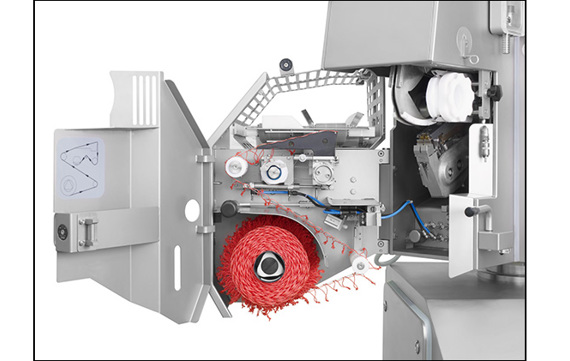

  • String loop feeder BSZ 105-2
  • String dispenser for ring-shaped products
  • Clip and loop end detection
  • Single clip setting
  • Clip coding
  • TagPrint 60 labeling system
  • Print mark control for centered trademark
  • Mechanical and visual length portioning
  • Swivel head, V-turret head or parallel turret head
  • Belt outlet, chute in various designs
  • Pneumatic casing brake for sensitive casings
  • Casing end detection
  • Nose wheel for easy maneuvering

Service

Marel offers a range of service solutions to prevent failures, maximize performance or in case of unexpected breakdowns remote or onsite assistance.

Marel has offices in 30 countries across all regions, and a global network of highly skilled professionals that provide remote as well as onsite service support. We provide quality spare parts and customized service agreements for our customers to ensure optimal performance of Marel equipment.

Gallery

Downloads

Title Size Document
Title TT1815/TT1512 - English Size (2.7MB) Document Download
Title TT1815/TT1512 - German Size (2.7MB) Document Download
Title TT1815/TT1512 - French Size (2.8MB) Document Download
Title TT1815/TT1512 - Russian Size (2.9MB) Document Download
Title TT1815/TT1512 - Spanish Size (2.7MB) Document Download
Title TT1815/TT1512 - Portuguese Size (2.8MB) Document Download
Title TT1815/TT1512 - Chinese Size (3.1MB) Document Download
Title TT1512 Parts Kit Size (0.1MB) Document Download
Title TT1815 Parts Kit Size (0.1MB) Document Download
